Product Description
Nanjing Clover Medical Technology Co., Ltd. is a leading waste incinerator manufacturer in China. We are local manufacturer and one of the largest exporter of China. Pyrolytic incinerator equipment technical is main waste treatment all of the world, for Medical Waste, Animal Incineration, Pet cremation and other Solid wste. The capacity from 10kgs/Hr. to 500kgs/Hr., up to 6ton per day. Presently, we supply different series for local customer requirements and design updated incinerator with our leading technology. The updated design feature of our range of incinerators make them one of the most cost effective in the world.

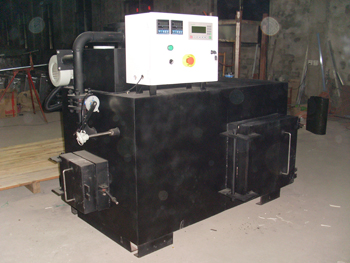

Items/Model | TS100(PLC) |
Burn Rate | 100 kg/hour |
Feed Capacity | 200 kg |
Control Mode | PLC |
Combustion Chamber | 1200L |
Internal Dimensions | 120x100x100cm |
Secondary Chamber | 600L |
Smoke Filter Chamber | Yes |
Feed Mode | Manual |
Voltage | 220V |
Power | 0.7Kw |
Oil Consumption (kg/hour) | 14–28 |
Gas Consumption (m3/hour) | 10–32.2 |
Temperature Monitor | Yes |
Temperature Protection | Yes |
Oil Tank | 200L |
Feed Door | 80x60cm |
Chimney | 10Meter |
Chimney Type | Stainless Steel |
1st. Chamber Temperature | 800℃–1000℃ |
2nd. Chamber Temperature | 1000℃-1200℃ |
Residency Time | 2.0 Sec. |
Gross Weight | 6000kg |
External Dimensions | 260x150x180cm |
